Top Loading Arm

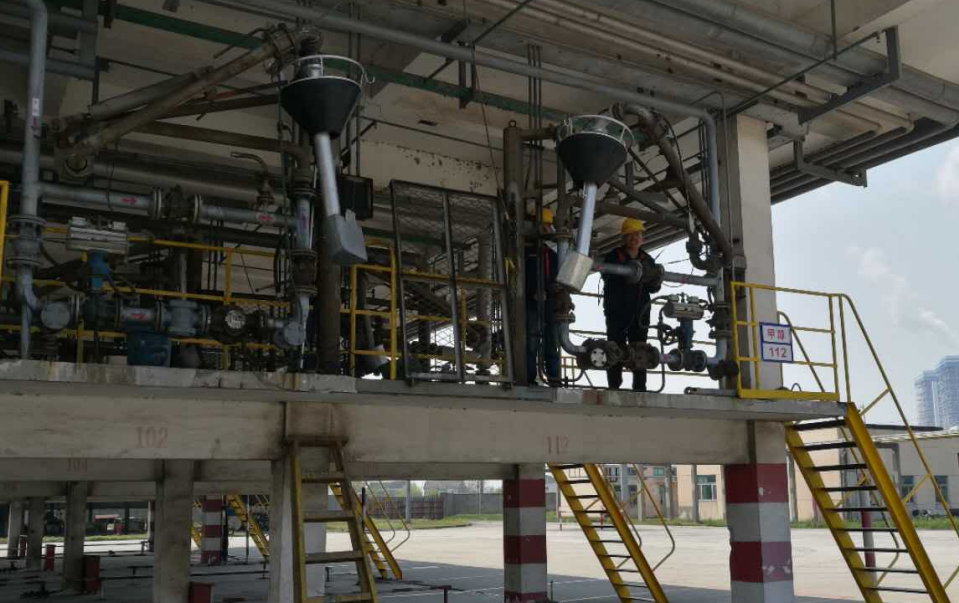

Top loading arm with vapor return hose consists of vapor return system and the top loading arm. By using the loading arm with vapor return hose for loading and unloading, product vapor can be effectively recovered, thereby improving the profitability of the terminal, and preventing it from polluting the environment and the dangerous accidents caused by it.
Product Introduction
Product Introduction

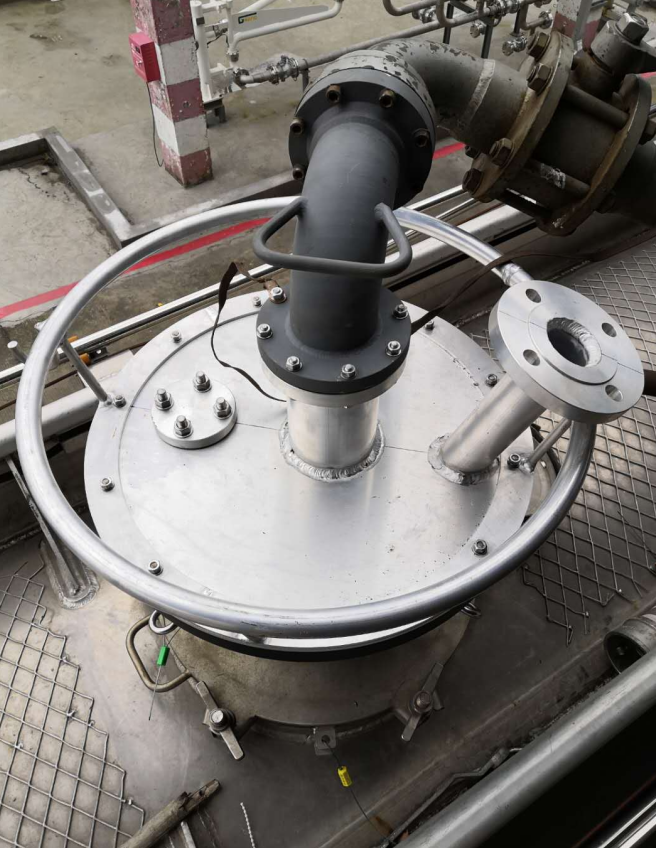

High level protection for operator and environment is provided by sealed manhole. Light weight makes it reliable and easy to operate.
Product Parameters
Product Parameters
| Product Seal | PTFE-C, PTFE virgin, FPM, NBR, PE, other material on request |
|---|---|
| Material | CS, LTCS, SS304, SS304L, SS316, SS316L |
| Balancing | Counterweight or spring cylinder |
| Medium | Hydrocarbons such as gasoline, toxic liquid and corrosive liquid |
| Diameter | DN50, DN80, DN100, DN150, DN200 |
| Design Temperature | -60 C to 180 C |
| Design Pressure | 0.5 MPa to 2.0 MPa |
Project Support
Need a Top Loading Arm for Truck or Railcar Loading?
Share medium, loading method, diameter, operating pressure, temperature, sealing material and vapor return requirements for a project-specific proposal.
