Quick Release Mooring Hook

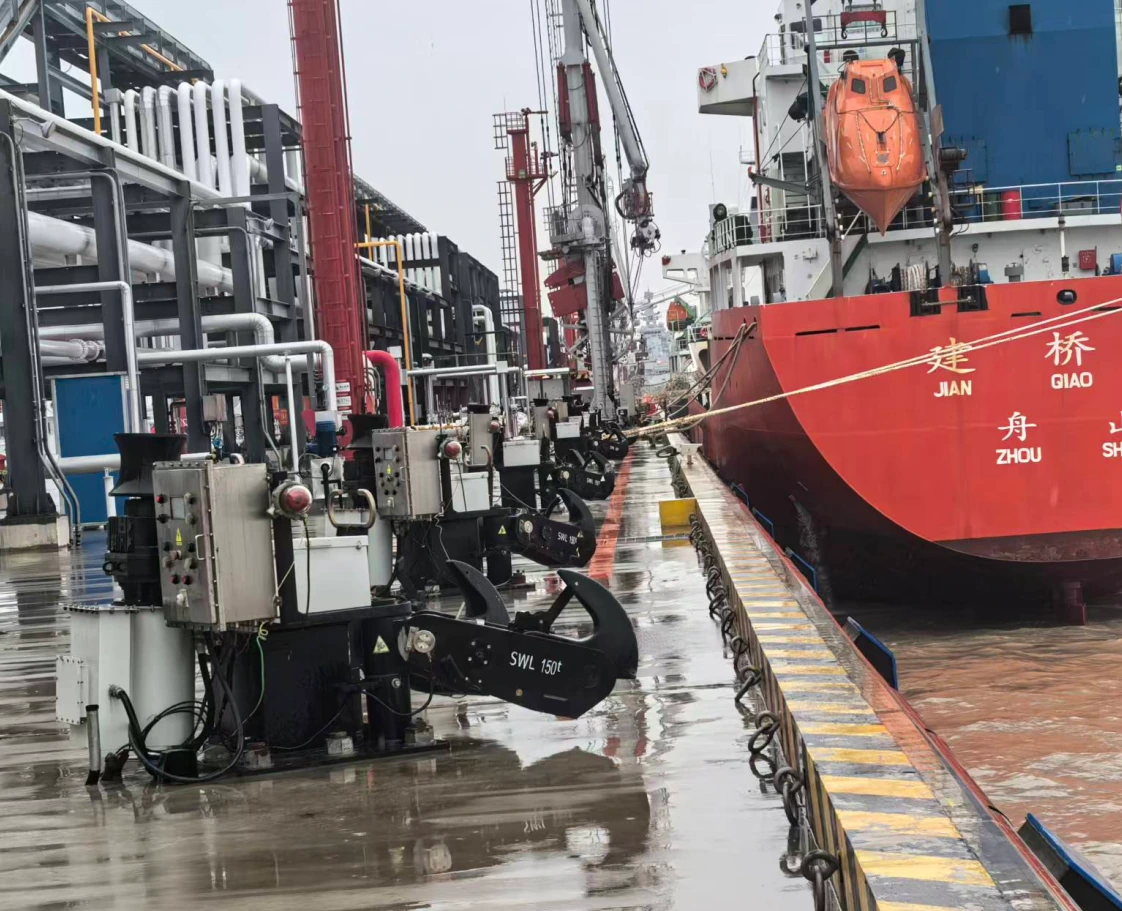

Quick Release Hook is a typical design in the field of Quick Release Mooring Hook. It can be used in the harshest marine environments and range from 25 to 150 tons. Standard manual release design allows upgrade to actuator release and load monitoring.
Description
Description
HLPE'S third generation of the double locking mechanism avoids total locking mechanism failure when one spring fails compared with the second generation single spring lock, and also avoids destroying the spring when releasing the hook at high load.
Product Parameters
Product Parameters
| Hook Quantity | 1~8 Pcs/Unit |
|---|---|
| Hook SWL (Safe Working Load) | 250~1500 kN |
| Hook Test Load | 1.25 or 1.5 x SWL |
| Hook Safety Factor | 1.8 |
| Capstan SWL (Safe Working Load) | 10~30 kN |
| Line Speed | 18~25 m/min |
| Protection - Motor | IP 56 |
| Protection - Foot Switch | IP 66 |
| Protection - Control Panel | IP 66 |
| Protection - Load Pin | IP 68 |
| Optional Configuration | Capstan; Mooring Load Monitor System; Remote Control System; Alarm System |
Project Support
Need a Quick Release Mooring Hook?
Share hook quantity, SWL, release method, capstan requirement, load monitoring requirement and site conditions for a project-specific proposal.
