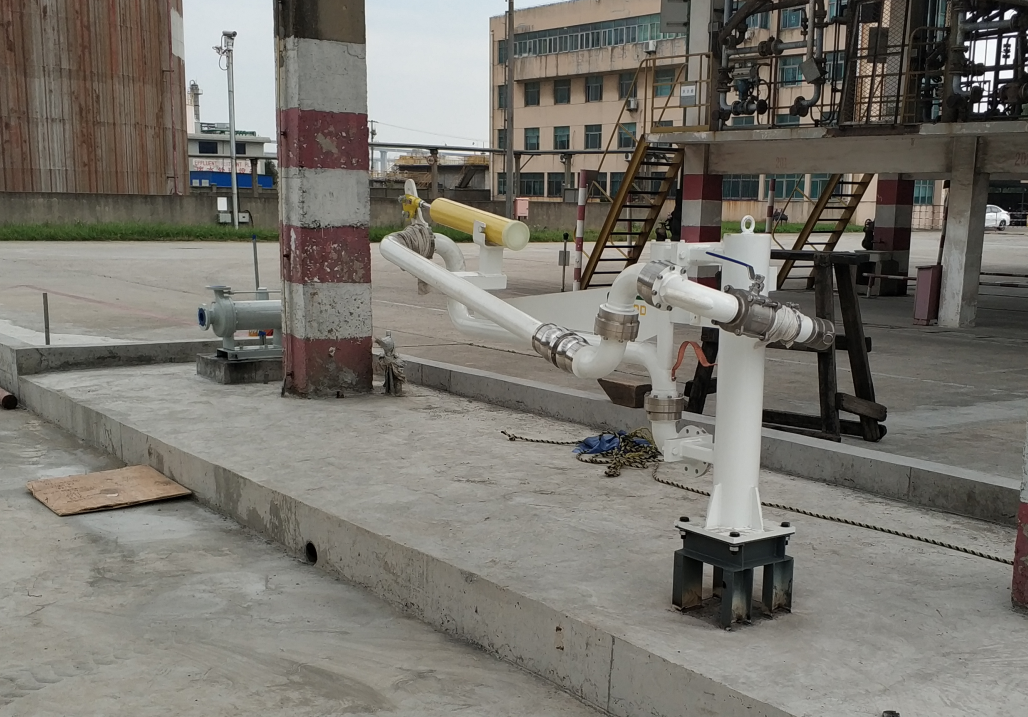

Bottom Unloading Loading Arm
Specialized for oil and chemicals loading and unloading. HLPEC can provide customers with the best loading/unloading solution.
Technical Features
Technical Features
Composed of liquid phase arm, the arm has five swivel joints, which can realize connection to the tank manhole at any position within the envelope range. The loading arm can be self-balanced at any position within the envelope range, which is easy to operate. The connection method with tanker can be flange, CAMLOCK coupler, ACME coupler and others, which can be customized according to the type of tanker and customer requirements. A break away coupling can be installed on outboard arm to effectively prevent the pipeline from damage caused by tanker accidently leaving the site in an emergency.
Product Parameters
Product Parameters
| Medium | Oil, gasoline, lubricating oil, chemicals or other medium as required |
|---|---|
| Pipeline Material | Carbon steel, low temperature carbon steel, stainless steel or other material as required |
| Diameter | DN50 / DN65 / DN80 / DN100 / DN150 |
| Design Temperature | -60 C to 80 C |
| Design Pressure | 0.5 MPa to 4.0 MPa |
| Product Seal | PTFE + 304 or other material as request |
| Balancing | Counterweight or spring cylinder |
Project Support
Need a Bottom Unloading Loading Arm?
Share medium, tanker connection type, diameter, operating pressure, temperature, material, balancing method and break away coupling requirements for a project-specific proposal.
