Bottom Loading Arm with API Coupler

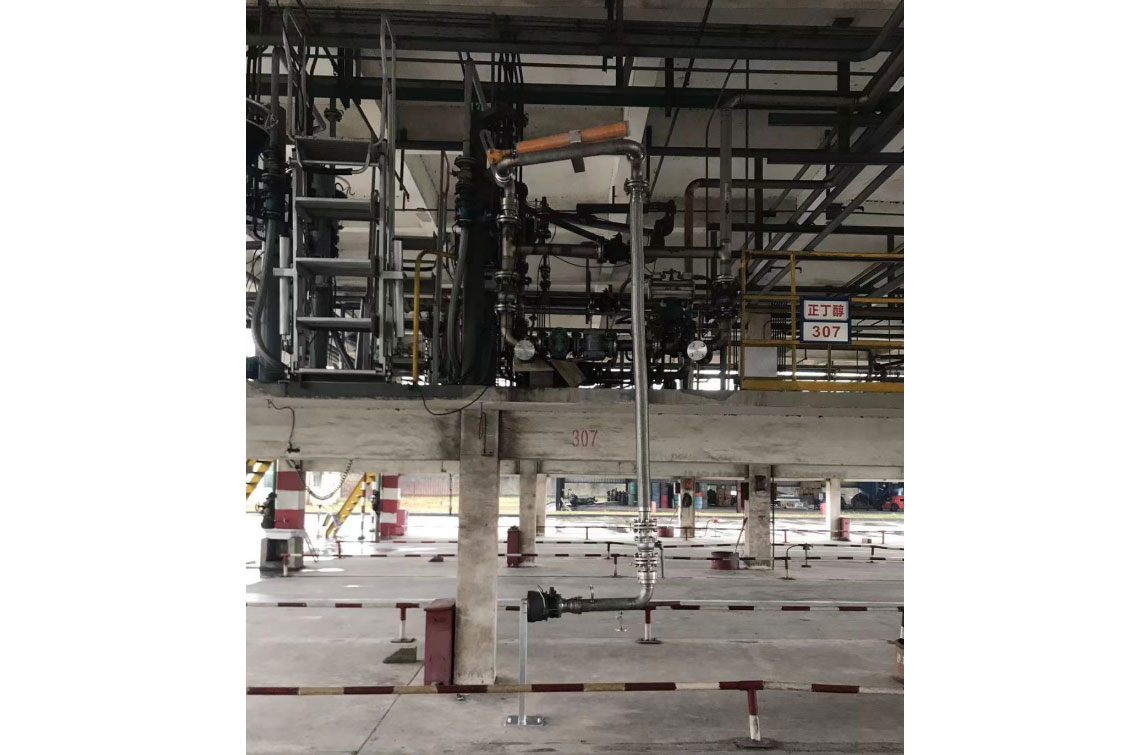

The bottom loading arm with API coupler consists of three parts: pipeline part, structural part and electrical part. The pipeline part includes an outboard arm, a drop pipe (hose), and a pipe-segment connecting with API coupler.
Product Introduction
Product Introduction
The pipe-segment is equipped with an API female coupler, and a break away coupling can be added as required. The structural part includes spring cylinder balancing device, parking bracket and reset locking device. Electrical part includes static conductive belts and proximity switch (optional). Suitable for loading and unloading gasoline and diesel, etc.
Product Parameters
Product Parameters
| Medium | Gasoline, diesel and other medium as required |
|---|---|
| Materials (Piping) | Carbon steel or stainless steel |
| API Coupler | Aluminum or stainless API coupler |
| Diameter | DN80 / DN100. Standard API coupler is 4 inch |
| Design Temperature | -60 C to 80 C |
| Design Pressure | 0.5 MPa to 2.0 MPa |
| Balancing | Spring cylinder |
Project Support
Need a Bottom Loading Arm with API Coupler?
Share medium, loading position, API coupler requirement, diameter, pressure, temperature, material and break away coupling requirements for a project-specific proposal.
